AnyNoOverlap Rule

: Syntax: AnyNoOverlap [Region region_expr] expression [string]

The AnyNoOverlap test signals a violation if any source figure is completely covered by the figures associated with the expression. This is illustrated in Figure 15.6, for no Region and an expression consisting of a single layer.

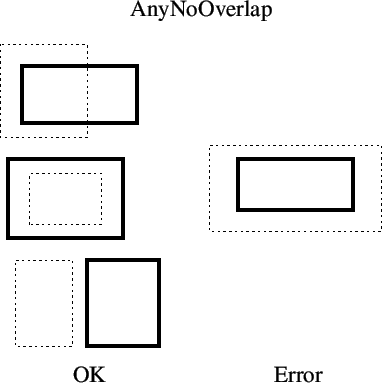

**Figure 15.6:** The *AnyNoOverlap* test. The present figure (solid) must be partially uncovered by figures resulting from evaluating the expression argument (dotted).
$\begin{figure} \vspace{1.5ex} \begin{center} \epsfbox{images/anynooverlap.eps} \end{center}\end{figure}$

The returns from the various Overlap tests are summarized in the table below.

rule total coverage partial coverage no coverage

Overlap ok error error

IfOverlap ok error ok

NoOverlap error error ok

AnyOverlap ok ok error

PartOverlap error ok error

AnyNoOverlap error ok ok

rule	total coverage	partial coverage	no coverage
Overlap	ok	error	error
IfOverlap	ok	error	ok
NoOverlap	error	error	ok
AnyOverlap	ok	ok	error
PartOverlap	error	ok	error
AnyNoOverlap	error	ok	ok
